| FEATURES |
- Suitable For LED Lighting E27 / GU10 Driver。
- High temperature operation，High Reliability。
- Constant current output 。
- Suitable For HI-Power LED Lighting。
- Universal AC Input / Full range。
- Output over voltage protection + SCP。
- 100% burn-in under high ambient temperature(45°C)。
- MTBF: 100,000 hour。
- CE compliant，RoHS compliant。
- Safety EN55015:2006, EN61547 ,IEC61347-2-13, IEC60968 compliant 。

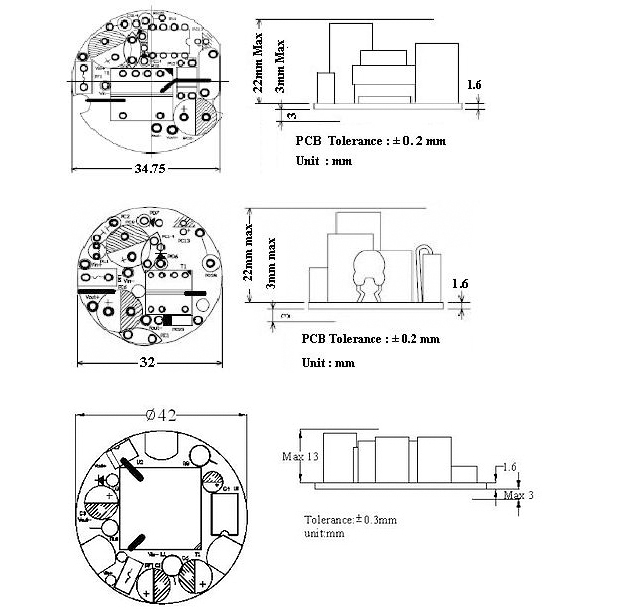

- Dimension: (L)* (W)* (H)mm。
|
| APPLICATION |
- Input Voltage Range : 90 ~ 264V AC , 47 ~ 63 Hz 。
- Operating Temperature(℃) at 0 TO +60℃，Humidity Operating 95％。
- Storage Temperature (℃) at -20 TO +80℃，Humidity Operating 95％。
|
| LED Lighting E27/GU10 Driver Series List |
| Model No. |
Output Watt Max. |
Output Voltage |
Output Current |
Dimension :mm |
Product |
| PLM01020 |
5W |
7Vdc |
700mA dc |
35(L)*35(W)*22(H) |
E27 |
| PLM01020A |
5W |
6.5Vdc |
630mA dc |
32(L)*32(W)*22(H) |
E27 / GU10 |
| PLM01028D |
5W |
6.5Vdc |
600mA dc |
36(L)*36(W)*16(H) |
E27 / GU10 |
| PLM01031 |
7W |
18Vdc |
330mA dc |
42(L)*42(W)*13(H) |
E27 / GU10 |
|
| |
 |
|
