☺Safety
▪ Meet IEC60950
☺Description

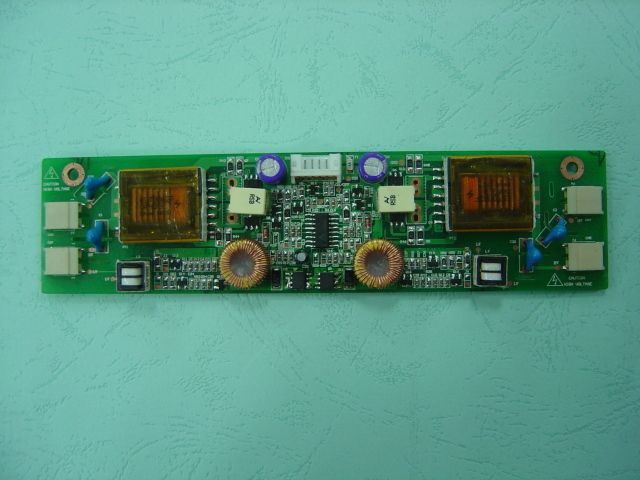

▪ This CCFL Inverter is compatible with AU 17"19" Four Lamp Panel
☺Features
▪ High efficiency
▪ Lamp Type: Four CCFL Lamps
▪ Output over voltage protection + SCP
☺Electrical Characteristcs
▪ Input Voltage: 10.8(MIN.) / 12.0(NOM.) / 13.2V(MAX.)
▪ Input Current: 1590 / 1890 / 2290mA
▪ Output Current: 6.0 / 6.5 / 7.0mA
▪ Lamp Frequency: 41 / 46 / 51KHz
▪ Open Voltage: 1650 / 1800 / 1950 Vrms
▪ Brt.: 0~4.8V		Negative
☺Connector
▪ Input: CN1 / LM302-006-TF-2
▪ Output: CN4,CN5,CN6,CN7 / LM403-002-TF-2
