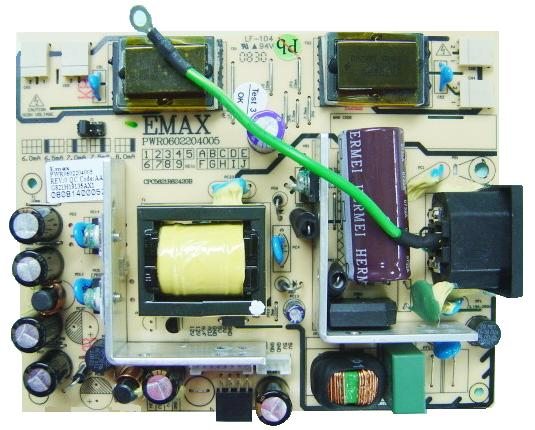

| ☺Safety |
| ▪ Meet IEC60950 |
| |
|
|
|
|
|
|
|
|
| ☺Features |
| ▪ High efficiency |
| ▪ Lamp Type: 22” Four Lamp panel. |
| ▪ Output over voltage protection + SCP+ OCP |
| |
| |
|
|
|
|
|
|
|
|
| ☺Electrical Characteristics |
| POWER |
| ▪ Input Voltage: Full Range (90V-264V) |
| ▪ Output Voltage / Current: 12V / 0.8A , 5V/4A |
| INVERTER |
| ▪ Input Voltage: 11.4 (MIN.) / 12.0(NOM.) / 12.6 (MAX.) |
|
| ▪ Output Current: 7.5 /8.0 /8.5mA ,7.0 /7.5 /8.0mA , 6.5 /7.0 /7.5mA , 6.0 /6.5 /7.0mA , 5.5 /6.0 /6.5mA |
|
|
|
|
|
|
|
|
|
| ▪ Lamp Frequecncy: 40 / 45 / 50KHz |
|
| ▪ Open Voltage: 1450 Vrms(MIN) |
|
| ▪ Brt.: 0~5V Negative |
|
|
|
|
|
|
|

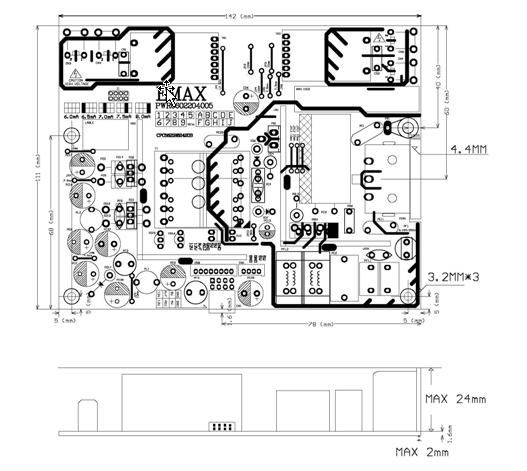

| ☺Connector |
| POWER |
| ▪ AC Input: TU-301-SP （TECX） |
| ▪ DC Output: CN1/ Pitch 2.54mm,2*4PIN,90°,BLACK |
| CN8 / Pitch 2.0mm 8 Pin ,CN6 / Pitch 2.0mm 4 Pin |
| INVERTER |
| ▪ AC Output: LM401-002-TF-2 (UNICORN ) |
