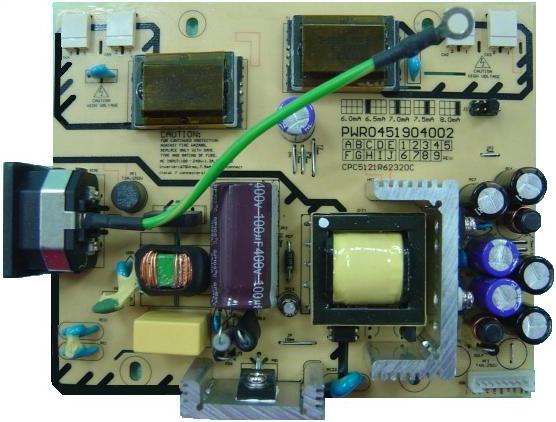

| ☺Safety |
| ▪ Meet IEC60950 |
| |
|
|
|
|
|
|
|
|
| ☺Features |
| ▪ High efficiency |
| ▪ Lamp Type: 19”(Model=AU M190EG01 V.0) Four Lamp panel. |
| ▪ Output over voltage protection + SCP+ OCP |
| |
| |
|
|
|
|
|
|
|
|
| ☺Electrical Characteristics |
| POWER |
| ▪ Input Voltage: Full Range (90V-264V) |
| ▪ Output Voltage / Current: 5V/3A |
| INVERTER |
| ▪ Input Voltage: 11.4 (MIN.) / 12.0(NOM.) / 12.6 (MAX.) |
|
| ▪ Output Current: 7.5 /8.0 /8.5mA ,7.0 /7.5 /8.0mA , 6.5 /7.0 /7.5mA , 6.0 /6.5 /7.0mA , 5.5 /6.0 /6.5mA |
|
|
|
|
|
|
|
|
|
| ▪ Lamp Frequecncy: 45 / 50 / 55KHz |
|
| ▪ Open Voltage: 1500 Vrms(MIN) |
|
| ▪ Brt.: 0~5V Negative |
|
|
|
|
|
|
|

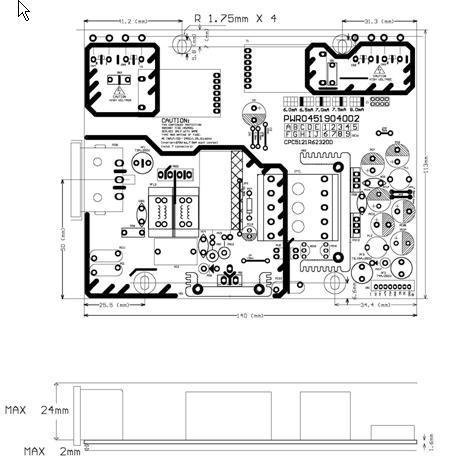

| ☺Connector |
| POWER |
| ▪ AC Input: TU-301-SP-SJEB15-AC4+M01(d) （TECX） |
| ▪ DC Output:LM301-08-TF-2 （UNICORN） |
| INVERTER |
| ▪ AC Output: CN2,CN3,CN4,CN5/LM323-B1-TF-2 (UNICORN ) |
